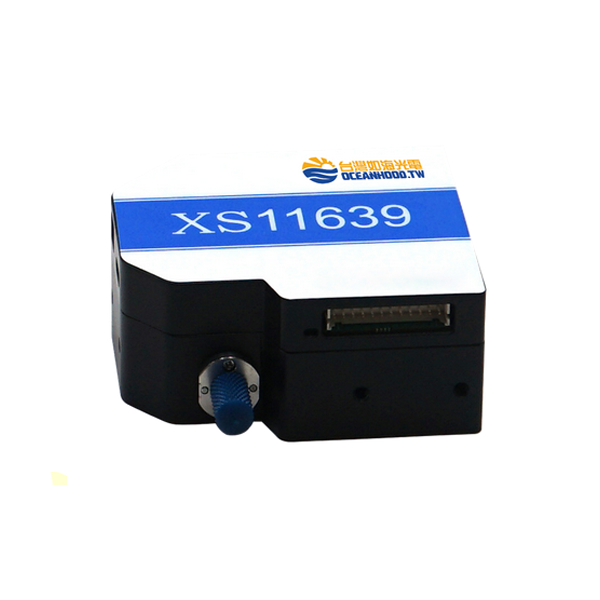

XS11639 Fiber Optic Spectrometer_OC

Introduction

The XS11639 is a basic fiber optic spectrometer featuring a compact and robust design.

It provides excellent UV response, good temperature stability, and high reliability, meeting the requirements of high-sensitivity sampling.

Equipped with a 24PIN control interface, it supports various measurement applications including color analysis, radiometric measurement, absorbance, fluorescence, and Raman spectroscopy.

Features

Configurable spectral range: 190-1100nm
Key-SMA905 design, suitable for kelp pin multi-core dense cluster fiber, fiber insertion strength consistency ≤7%
Strong UV spectral response
High performance AD quantization sampling circuit, CCD quantization background noise ≤30RMS (minimum integration time)
Supports multiple communication interfaces: USB, RS232, and 24PIN interactive interface
Configure proprietary DAC and ADC, can achieve supporting light source enable, intensity control and power feedback

Specification

Optical parameters
Optical fiber interface	Key-SMA905
Number of pixels	2048
Stray light	<0.3%
Wavelength shift with temperature	~0.3pixel/℃
Consistency of optical fiber insertion and removal	≤7%
Function parameters
AD sampling	16bit
Data interface	USB2.0, RS232
Extended function interface	24PIN
Acquisition mode	Single, continuous, software trigger, synchronous external trigger, asynchronous reset external trigger
Detector integration time	60μs-65S
CCD read noise1	≤30
CCD dynamic range 2	3000:1
Signal-to-noise ratio	380:1
Response linearity 3	≥98%
Others
Weight	≈190g
Dimension	75×63.5×35 mm
Operating temperature	0℃~40℃
Working humidity	20%-85%
1.CCD readout noise: RMS value of CCD readout noise at minimum integration time; 2.CCD dynamic range: Calculated as (saturation value − dark noise baseline) / standard deviation of CCD readout noise, evaluated according to Oceanhood Opto-Electronics standards.; 3.Response linearity: The response nonlinearity is measured before calibration.
